SPECIFICATIONS & FEATURES:

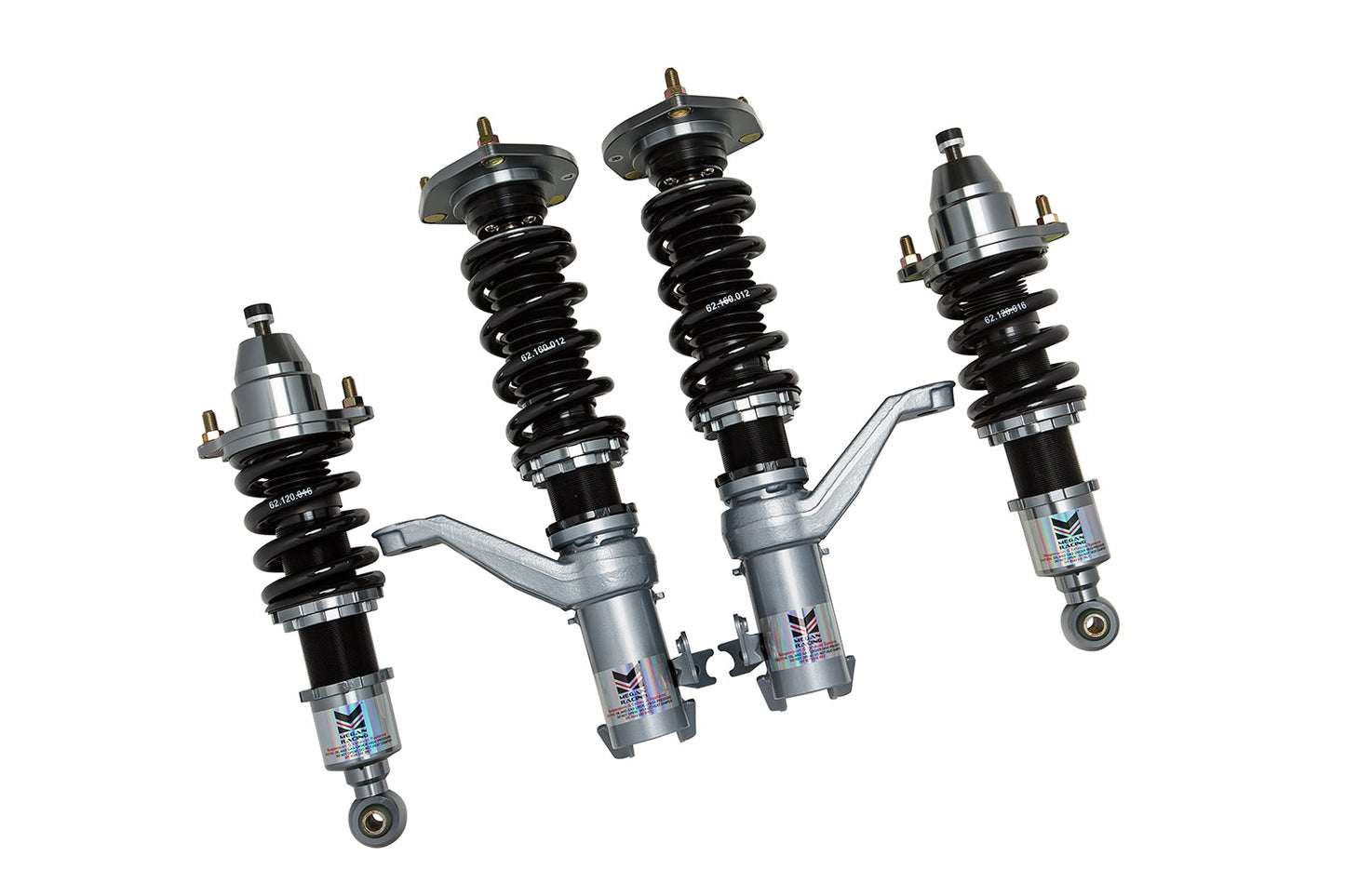

APPLICATION: Acura RSX Base/Type S 02-06

SPRING RATES:
F: 12 kg/mm
R: 16 kg/mm

- 32 Levels of Damper Force Adjustment

- Pillow Ball Upper Mounts w/ Front Camber Plates

- Rubber Dust Boots

- Wide-Range Adjustable Ride Height

- Competition Spring Rates

- Motor-sport Inspired Mono-Tube Design

- Aluminum Brackets

32 Levels of Adjustment:

1-8: Suggested for track use.
9-16: Suggested for mountain/aggressive use.
17-32: Suggested for common street use.

- All coil-over damper kits come with 1 year manufacturer-defect warranty.

- All Hardware is Included

NOTE: Due to customers that have reported issues with the straight arm lower brackets that track their vehicle, the straight angle does not work properly and we have re-designed them with angled arm to get the perfect steering alignment. The brackets included with the kits are currently angled upwards, similar to OEM equipment but at a lower angle. Also, the taper for the steering tie rod ends are reversed to allow the tie rod end to be inserted from the bottom instead of the top as is done so with the OEM equipment. This is done to keep the angle of the tie rod arm to match the lower control arm angle to minimize bump-steer that is encountered when the deviation between the tie rod arm angle and the lower control arm angle are too great.


Megan Racing Coil-Over Dampers are the ultimate upgrade to your track or street car. Featuring 32 levels of damper force adjustment, separate spring perch height and shock length adjustment allowing you to retain full suspension stroke and to fine tune your suspension characteristics. These damper kits are then perfectly matched with front and rear Pillow Ball upper mounts, including camber plates integrated with the upper Pillow Ball mounts on strut-type suspension applications.
